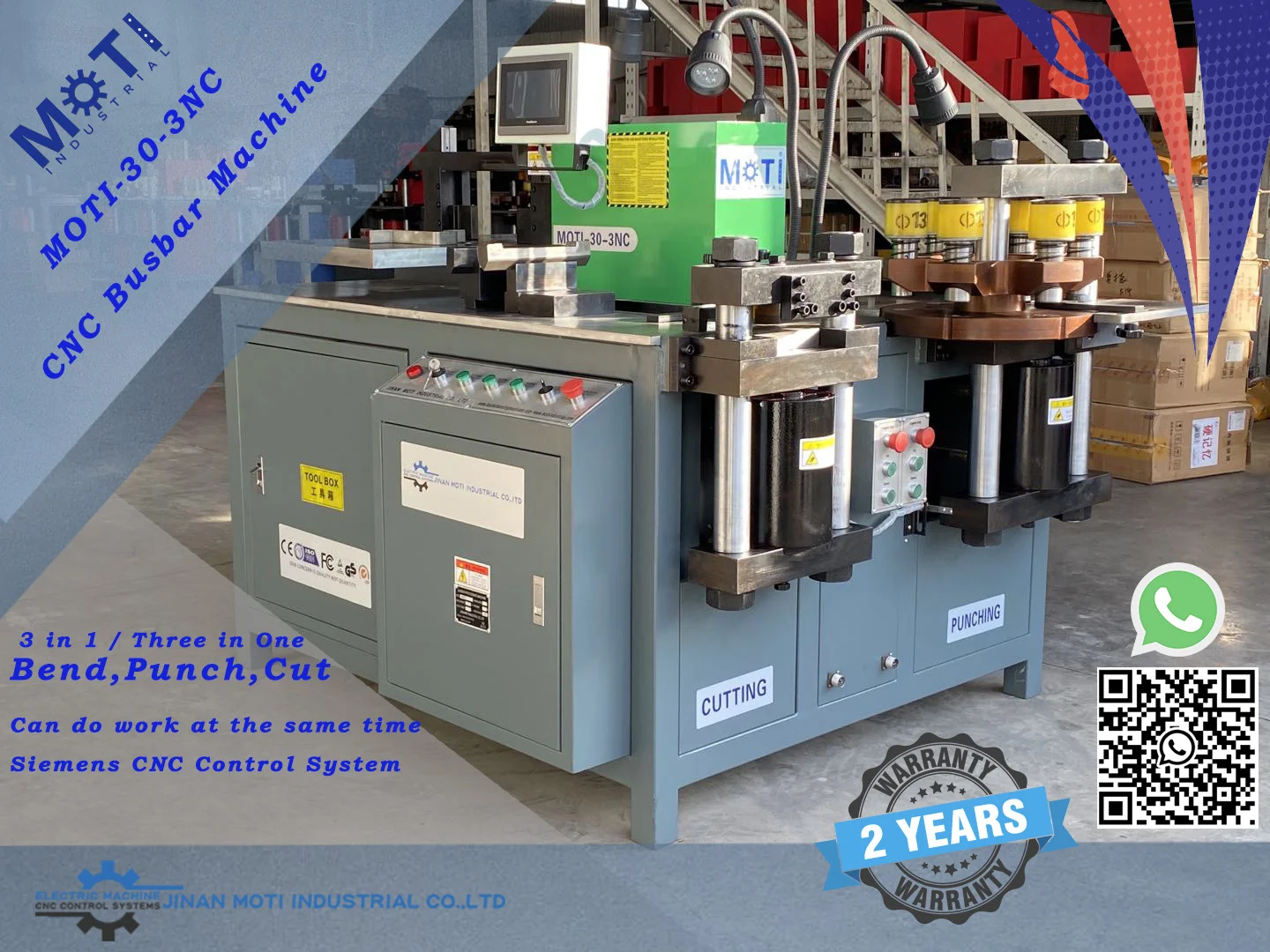

The MOTI-30-3NC is a versatile 3-in-1 CNC busbar machine capable of processing copper and aluminum busbars up to 12mm thick and 160mm wide. Featuring a six-position turret punching system and high-precision CNC bending, it delivers clean, burr-free results for electrical switchgear manufacturers worldwide.
Operation Video Of MOTI-30-3NC
To learn more details, please watch the video below.
Cutting Unit Of MOTI-30-3NC
Cutting Unit
- Scissor-style Design
High-precision, burr-free, and clean cuts on copper or aluminum, and the tearing area is less than 25%, reducing the need for secondary finishing.
- High-quality Cutting Blade
The cutting blade is made of high-quality Cr12mov mold steel with high hardness and good wear resistance. It is matched with a stable and powerful hydraulic system.
- The Dual-column Shearing Unit Architecture Design
Ensures uniform force distribution during shearing, smooth shearing of copper busbars, and also protects the shearing blades from wear.
- Saving Cost
Cutting copper busbars without waste
Punching Unit Of MOTI-30-3NC
Punching Unit
Six-position Turret-type Punching Turntable Design
It can simultaneously assemble 6 busbar punching dies of different sizes. The turntable can be manually rotated to change dies for punching operations, reducing the frequency of die changes, minimizing operational errors, and improving work efficiency.
- Type Of Punching Hole
It can punch round holes, oval (waist) holes, rectangular (Oblong) holes, and square holes, including busbar chamfers.
The punching range is Φ4mm — Φ25mm
The punching section is smooth and burr-free, and the error is ±0.1mm
Supporting customization of special specifications.
- Three Punching Positioning Methods:
(1) Coordinate axis positioning
(2) Punching pin positioning
(3) Laser light positioning.
Busbar Punches & Dies Of MOTI-30-3NC
Busbar Punching Dies
Selecting the appropriate busbar punches and dies is a crucial aspect to consider before placing your order.
(1) The size of punches & dies
Our standard size of punching dies in stock:
Round hole of punching die: Φ7，Φ9, Φ11, Φ13, Φ15，Φ17, Φ19, Φ21 (mm)
Oval hole of punching die: 7×11(mm), 9×13(mm), 11×15(mm), 13×18(mm), 17×21 (mm)
(2) We can also customise the punching dies’ size for you. Such as, round, oval, square or alien
Technical Specifications Of MOTI-30-3NC
| Function | Item | MOTI-30-3NC | MOTI-50-3NC | MOTI-80-3NC | |
|---|---|---|---|---|---|
| Punch | Max. Punch Force (KN) | 300 | 500 | 800 | |
| Punch Diameter Range (MM) | ø4.3 ~ ø25 | ø4.3 ~ ø34 | ø4.3 ~ ø34 | ||
| Max. Thickness (MM) | 12 | 16 | 20 | ||
| Cut/ Shear | Max. Cut Thickness (MM) | 12 | 16 | 20 | |
| Max. Cut Width (MM) | 160 | 250 | 300 | ||
| Vertical Bend | Max. Bend Force (KN) | 300 | 500 | 800 | |
| Max. Thickness (MM) | 12 | 16 | 20 | ||
| Max. Width (MM) | 160 | 250 | 300 | ||
| Horizontal Bend | Max. Width (MM) | 100mm x 10mm | 120mm x 12mm | 120mm x 12mm | |
| Max. Angle (Degree) | 90° | 90° | 90° | ||
| Twist Bend | Max. Thickness (MM) | 12 | 16 | 20 | |
| Max. Width (MM) | — | — | — | ||
| Dimension | MM | 1790×1400×1420 | 1950×1560×1420 | 2060×1600×1560 | |
| Motor Power | KW | 3 × 4 KW | 3 × 5.5 KW | 3 × 7.5 KW | |
| Weight | KG | 1450 KG | 1750 KG | 2350 KG | |
| CNC Precision | Bending Precision | ±1° | ±1° | ±1° | |
| Repeat Bending Precision | ±0.3° | ±0.3° | ±0.3° | ||
Custom Mold Selection For MOTI-30-3NC
Custom Molds For MOTI-30-3NC
We offer a wide range of tooling options tailored to meet the diverse busbar cutting, punching, and bending requirements of our customers.
Closed-Type Bending Unit For MOTI-30-3NC
Closed-Type Bending Unit
Mill and deep mark the graduated measuring and angles, difficult to erase.
